Platinum

Built-in hood

DHT1156X
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 127.8ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Fascination
Collection

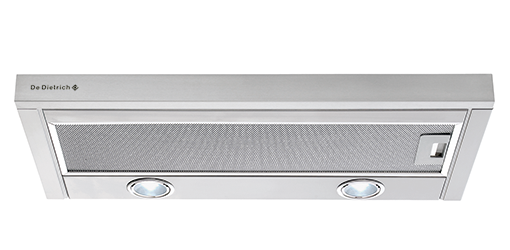

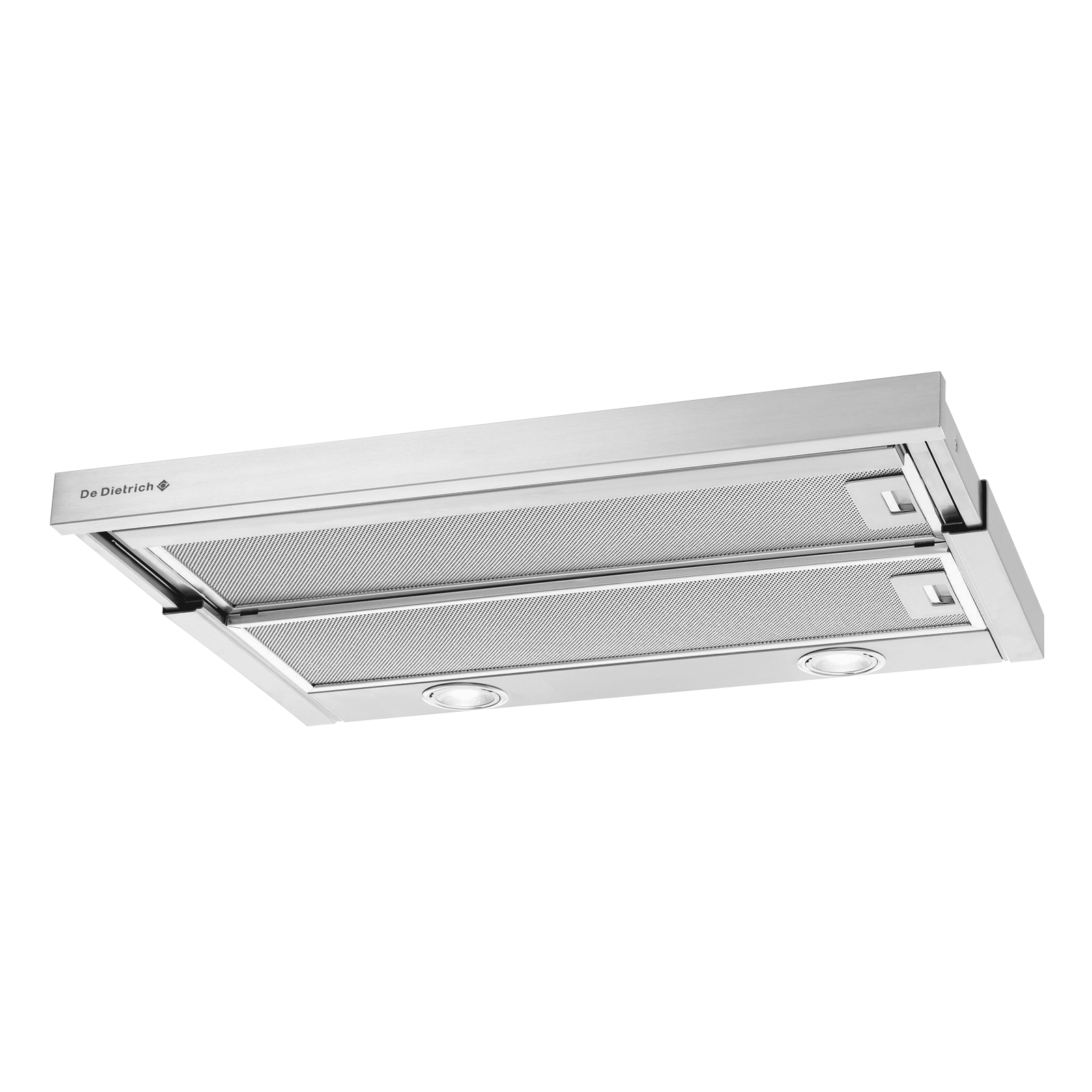

The greatest attention to detail has been paid in the telescopic design of this hood, which comprises a sliding front panel. Its stainless steel grease filters are fully dishwasher-proof. A light comes on to show that filters are saturated and request cleaning to return them to maximum efficiency. The art of maintaining excellence - synonymous with De Dietrich.

colors
Absolute Black
zoom
The Utmost Discretion
The telescopic hood hides away under a wall cabinet, displaying no outward signs of its functional qualities. Its controls are concealed behind an understated stainless steel front panel - full access is gained by simply pulling it towards you. Its new self-close system ensures smooth and gentle operation.
Saturation Indicator for Grease and Carbon Filters
In order to ensure the hood works at maximum effi ciency, we recommend that grease fi lters are cleaned and the carbon fi lter is changed regularly. This warning light illuminates when grease has built up on the fi lters and they need cleaning or replacing.

Download :

Main Specifications
Type of hoods:
Built-in / Telescopic hood
Output air extraction (m3/h):
490
Width (cm):
60
Control panel
Type of control:
Electronic
Boost position:
None
Lighting
Number of lights:
2
Light position:
Rear
Type of bulb:
Halogen
Performances
Number of speed positions:
3
Acoustic power level (recycling) (dBA):
45
Max recycling air extraction (m3/h):
268
Boost position output recirculating (m3/h):
290
Boost position air extraction (m3/h):
570
Minimum evacuation sound level (dBA):
54
Max evacuation sound level (dBA):
65
Filtering
Number of filters:
2
No-return airflow clap:
Yes
Accessories:
Characoal filter
Dimensions
Height of product without chimmey (mm):
395
Dimensions of product HxWxD (mm):
395X598X295
Dimensions of the packed product HxWxD (mm):
520X700X400
Gross weight (kg):
15.2
Net weight (kg):
13
Connections
Voltage (V):
220-240
Frequency (Hz):
50/60
Current (A):
10
Connection rating (W):
260

Créateur d'émotions depuis 1684
