Platinum

Gas hob

DPE7549XF
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 133.62ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Fascination
Collection

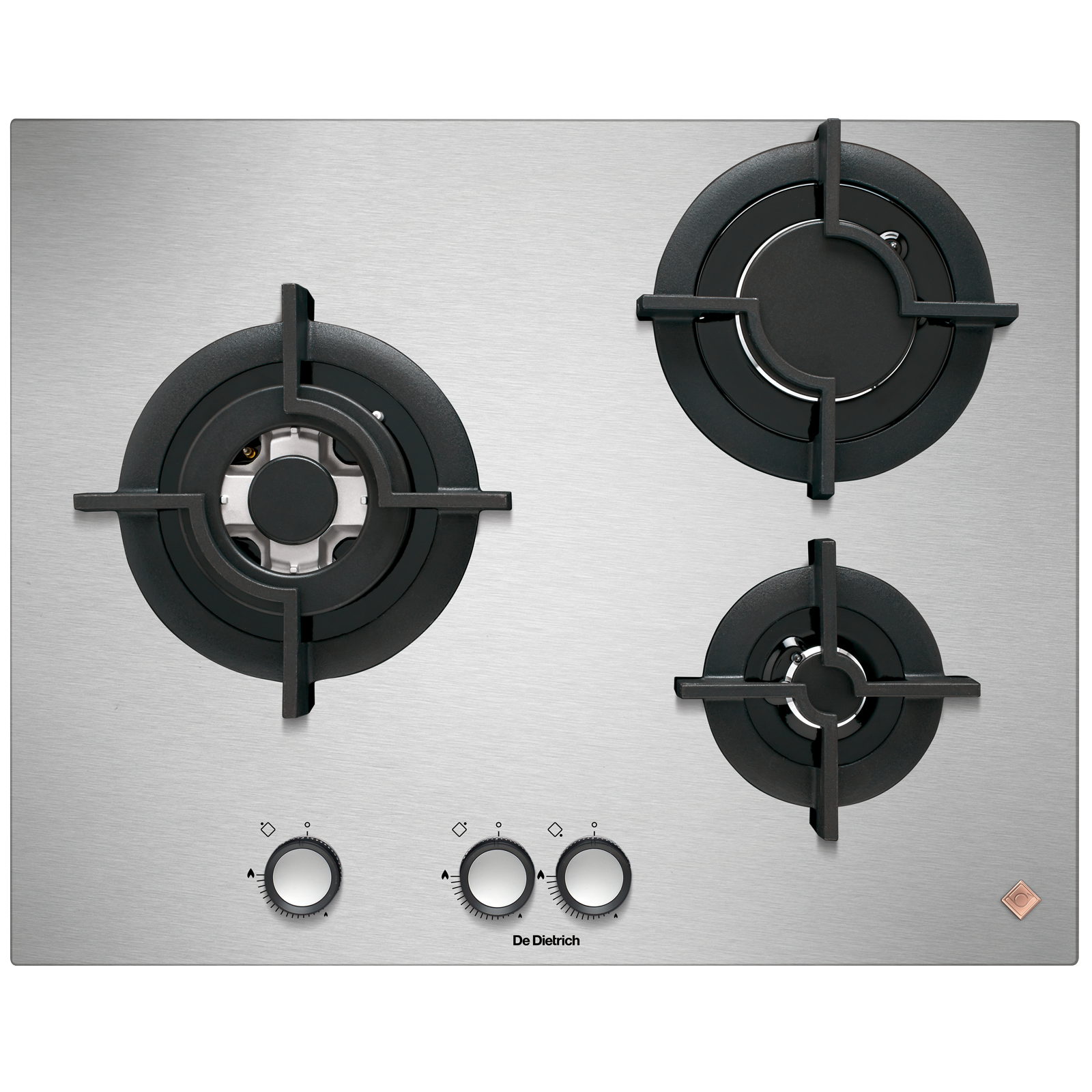

This three-burner gas hob sits flush with your cooking surface, lending your kitchen a satisfyingly functional feel.  Its prized stainless steel surface can be wiped clean with a sponge once the three grills and burners are removed, and will retain both its high-quality performance and shine for years to come.

colors
Absolute Black
zoom

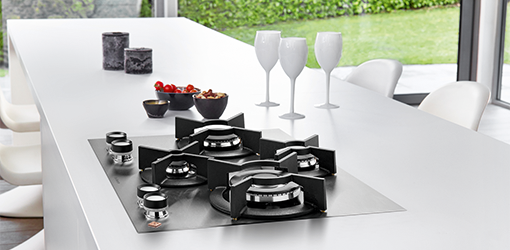

“Flat” Hob - Restyled Cooking Areas
Redesigned to provide maximum comfort and convenience during use. With 3 gas burners arranged in a diamond shape, maximum use can be made of the space, with both small and large pans easily accommodated. The perfectly flat, polished surface can be installed perfectly fl ush with the work surface.

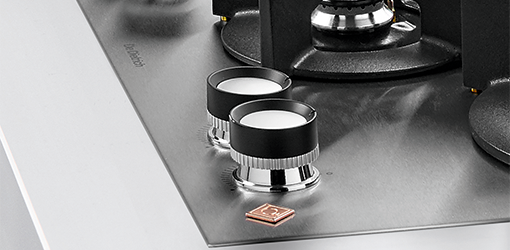

Ergonomically-Designed Knobs
All knobs have been specially designed to offer the highest levels of ease and comfort during use. Adjusting the heat of the burners is an easy and accurate process.
Gas Cooking in Complete Safety
A thermocouple safety system is located against each burner, which activates as soon as you touch the controller to ignite it. If necessary, this thermocouple instantly and automatically cuts off the gas supply to prevent any leakages occurring should the flame accidentally be extinguished.

Download :

Main Specifications
Hob type:
Gas
Width (cm):
65
Energy:
Gas
Cooking zones
Number of zones:
3
Heating element location:
Center left
Heating element location N°2:
Front right
Heating element location N°3:
Rear right
Type of heating element :
Gas
Type of heating element N°2:
Gas
Type of heating element N°3:
Gas
Dimensions of the heating element (mm):
Triple ring
Dimensions of the heating element N°2 (mm):
Auxiliary
Dimensions of the heating element N°3 (mm):
Large rapid
Maxi power for heater (W):
3800
Maxi power for heater (W) N°2:
850
Maxi power for heater (W) N°3:
3100
Timer:
Without timer
Timer N°2:
Without timer
Timer N°3:
Without timer
Control panel
Type of control:
Knob
Type of energy regulation:
Tap with safety
Timer:
Without timer
Ignition system:
Integrated
Electric Connections
Current (A):
10
Voltage (V):
220-240
Frequency (Hz):
50
Length electrical supply cord (cm):
93
Plug type:
Without
Gas Connections
Hob maximum gaz power input (kW):
7.75
Factory Setting Gas Type:
Natural 20 mbar
Others gas possibilities:
Butane / Propane
Delivered injectors:
Injector wrench;Butane gas injectors set 29 mbar
Safety devices
Power Indicator:
No
Top Gas Safety Device:
Burner gas safety
Certificates of approval:
EEC
Dimensions
Dimensions of the packed product HxWxD (mm):
170X860X600
Built in dimensions WxD (mm):
560X490
Overall dimensions above the working surface HxWxD (mm):
61X610X520
Dimensions under worktop HxWxD (mm):
50X553X476
Net weight (kg):
9.5
Gross weight (kg):
10.6
