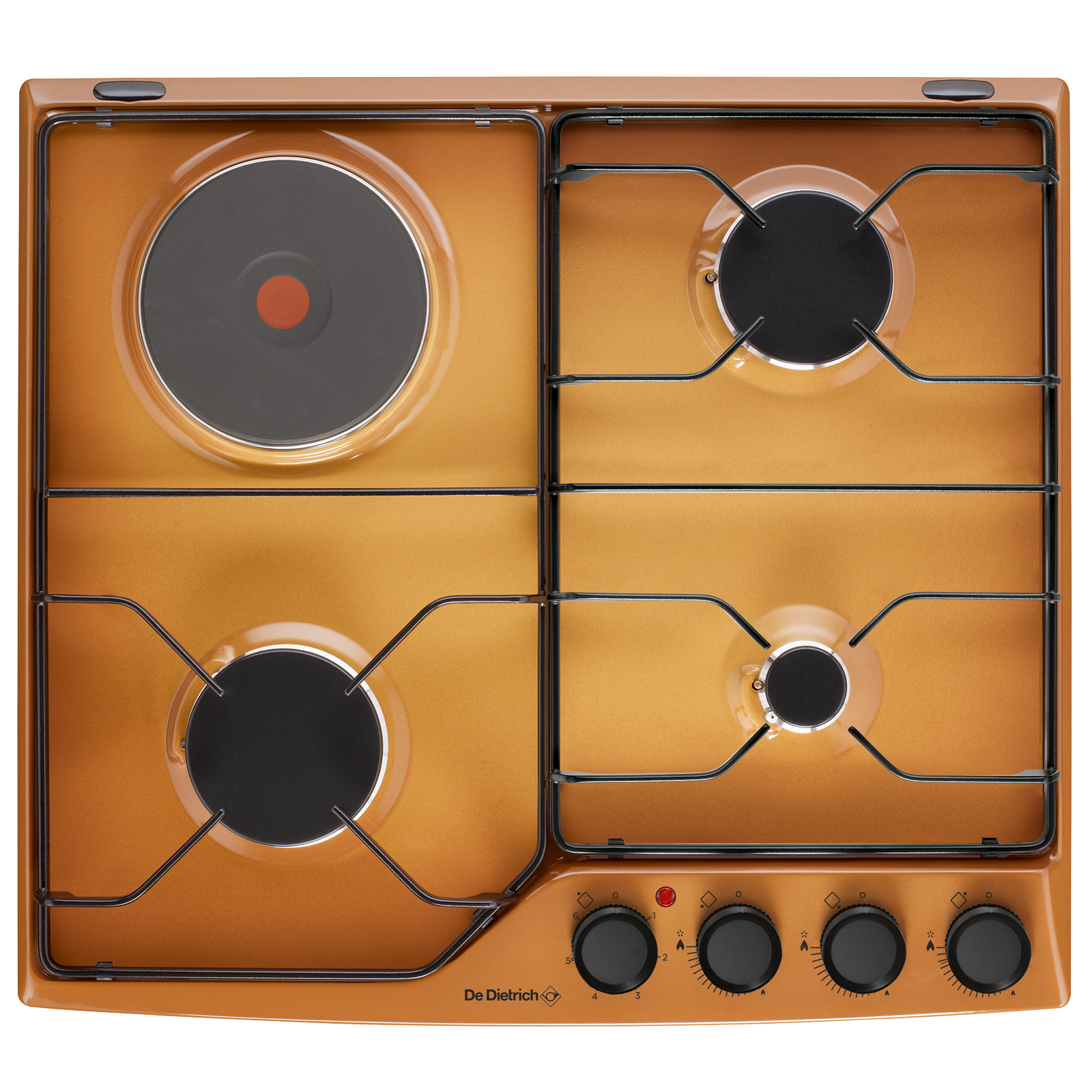

Gas hob

DPE7610FM
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 132.49ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Fascination
Collection

All of the brand’s expertise and craftsmanship is embodied in this enamelled steel hob, giving you greater efficiency, user comfort and convenience: pan supports with anti-slip feet, integrated ignition, a thermocouple gas safety cut off system for each burner, a temperature limiter on the electric hotplate and more.

colors
Absolute Black
Absolute Black
Absolute Black
Absolute Black
zoom

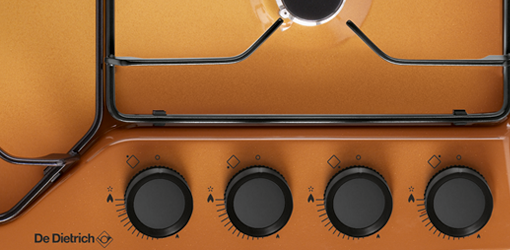

Ergonomically-Designed Knobs
All knobs have been specially designed to offer the highest levels of ease and comfort during use. Adjusting the heat of the burners is an easy and accurate process.
Gas Cooking in Complete Safety
A thermocouple safety system is located against each burner, which activates as soon as you touch the controller to ignite it. If necessary, this thermocouple instantly and automatically cuts off the gas supply to prevent any leakages occurring should the flame accidentally be extinguished.

Download :

Main Specifications
Hob type:
Mixed gas / electric
Width (cm):
60
Energy:
Mixed gas / electric
Cooking zones
Number of zones:
4
Heating element location:
Front Left
Heating element location N°2:
Rear left
Heating element location N°3:
Front right
Heating element location N°4:
Rear right
Type of heating element :
Gas
Type of heating element N°2:
Electric
Type of heating element N°3:
Gas
Type of heating element N°4:
Gas
Dimensions of the heating element (mm):
Large rapid
Dimensions of the heating element N°2 (mm):
145 with limitor
Dimensions of the heating element N°3 (mm):
Auxiliary
Dimensions of the heating element N°4 (mm):
Rapid
Maxi power for heater (W):
3100
Maxi power for heater (W) N°2:
1500
Maxi power for heater (W) N°3:
850
Maxi power for heater (W) N°4:
2250
Control panel
Type of control:
Knob
Type of energy regulation:
Tap with safety
Timer:
No
Ignition system:
Integrated
Electric Connections
Hob max electric power input (KW):
1.5
Current (A):
10
Voltage (V):
220-240
Frequency (Hz):
50
Length electrical supply cord (cm):
100
Plug type:
Without
Gas Connections
Hob maximum gaz power input (kW):
6.2
Factory Setting Gas Type:
Natural 20 mbar
Others gas possibilities:
Butane / Propane
Delivered injectors:
Injector wrench;Butane gas injectors set 29 mbar
Safety devices
Power Indicator:
Yes
Residual heat Indicators:
Without
Central locking:
No
Top Gas Safety Device:
Burner gas safety
Certificates of approval:
EEC
Dimensions
Dimensions of the packed product HxWxD (mm):
145X670X600
Built in dimensions WxD (mm):
560X490
Overall dimensions above the working surface HxWxD (mm):
49X580X522
Dimensions under worktop HxWxD (mm):
34x558x475
Net weight (kg):
8.9
Gross weight (kg):
9.8
