Fascination
Collection

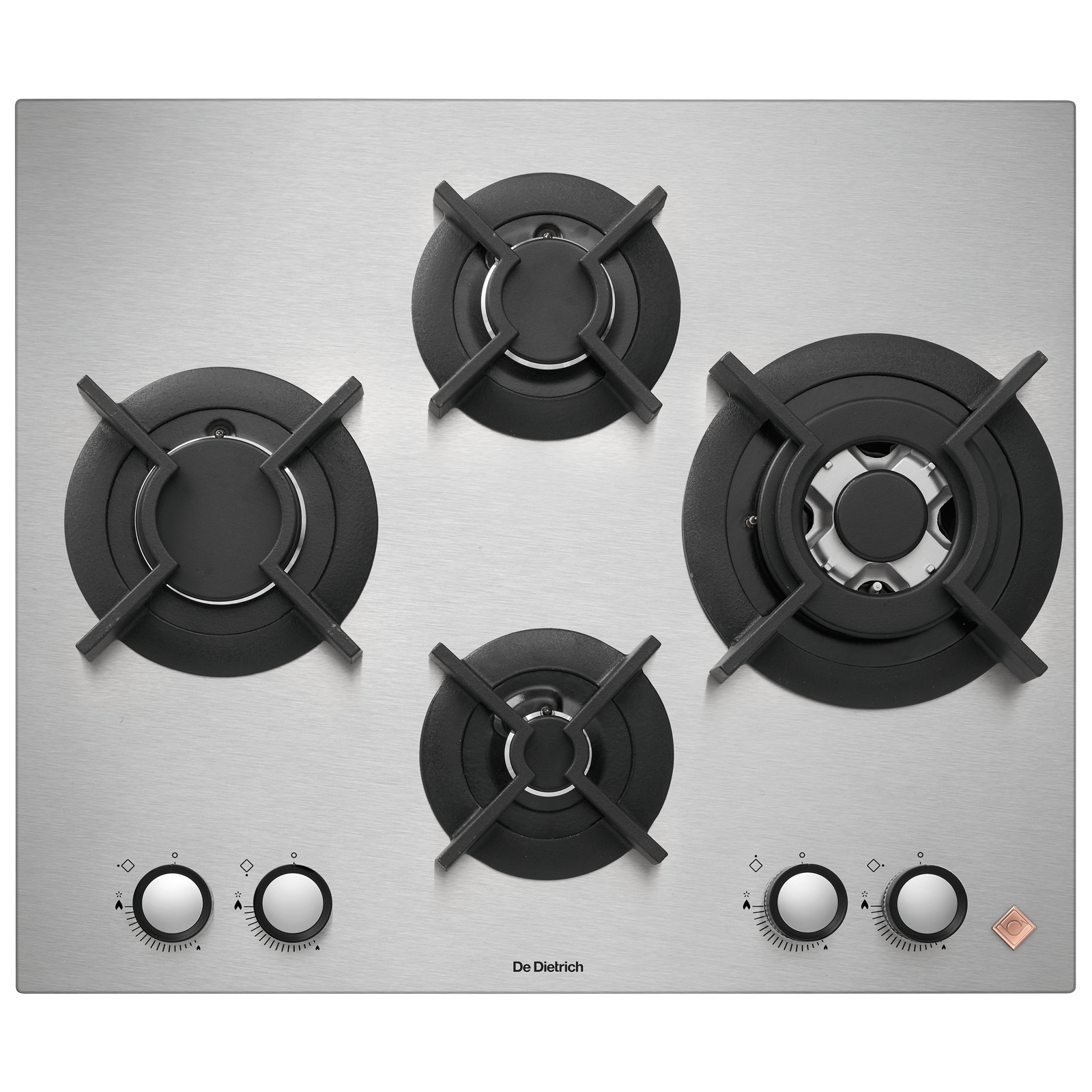

Designed with innovation in mind, this new 65 cm gas hob will add a distinctive and much sought-after extra dimension to your kitchen. With a perfectly smooth stainless steel surface and four burners arranged in an ergonomic diamond-shaped layout, this unit sits flush with the countertop to give you the very brightest and best cooking performance.

colors
Absolute Black
zoom
“Flat” Hob - Restyled Cooking Areas

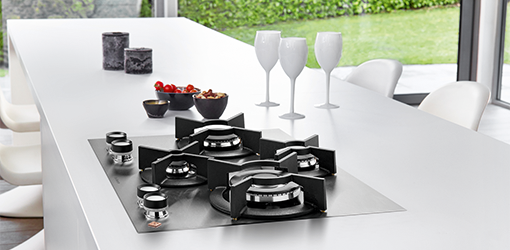

Redesigned to provide maximum comfort and convenience during use. With 4 gas burners arranged in a diamond shape, maximum use can be made of the space, with both small and large pans easily accommodated. The perfectly flat, polished surface can be installed perfectly fl ush with the work surface.

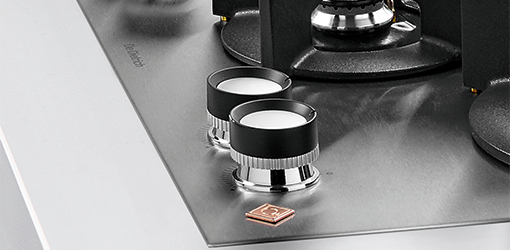

Ergonomically-Designed Knobs
All knobs have been specially designed to offer the highest levels of ease and comfort during use. Adjusting the heat of the burners is an easy and accurate process.
Gas Cooking in Complete Safety
A thermocouple safety system is located against each burner, which activates as soon as you touch the controller to ignite it. If necessary, this thermocouple instantly and automatically cuts off the gas supply to prevent any leakages occurring should the flame accidentally be extinguished.

Download :

Main Specifications
Hob type:
Gas
Width (cm):
65
Energy:
Gas
Cooking zones
Number of zones:
4
Heating element location:
Front Center
Heating element location N°2:
Center left
Heating element location N°3:
Center right
Heating element location N°4:
Rear Center
Type of heating element :
Gas
Type of heating element N°2:
Gas
Type of heating element N°3:
Gas
Type of heating element N°4:
Gas
Dimensions of the heating element (mm):
Auxiliary
Dimensions of the heating element N°2 (mm):
Rapid
Dimensions of the heating element N°3 (mm):
Triple ring
Dimensions of the heating element N°4 (mm):
Semi rapid
Maxi power for heater (W):
850
Maxi power for heater (W) N°2:
2300
Maxi power for heater (W) N°3:
3800
Maxi power for heater (W) N°4:
1450
Timer:
Without timer
Timer N°2:
Without timer
Timer N°3:
Without timer
Timer N°4:
Without timer
Power Indicator N°4:
Without
Control panel
Type of control:
Knob
Type of energy regulation:
Tap with safety
Timer:
No
Ignition system:
Integrated
Electric Connections
Current (A):
10
Voltage (V):
220-240
Frequency (Hz):
50
Length electrical supply cord (cm):
100
Plug type:
Without
Gas Connections
Hob maximum gaz power input (kW):
8,4
Factory Setting Gas Type:
Natural 20 mbar
Others gas possibilities:
Butane / Propane
Delivered injectors:
But gas injectors set;Injector wrench
Safety devices
Central locking:
No
Top Gas Safety Device:
Burner gas safety
Saucepan detection:
No
Certificates of approval:
EEC
Dimensions
Dimensions of the packed product HxWxD (mm):
170X860X600
Built in dimensions WxD (mm):
560X480
Overall dimensions above the working surface HxWxD (mm):
50X650X520
Dimensions under worktop HxWxD (mm):
51X550X470
Net weight (kg):
9.6
Gross weight (kg):
10.5
