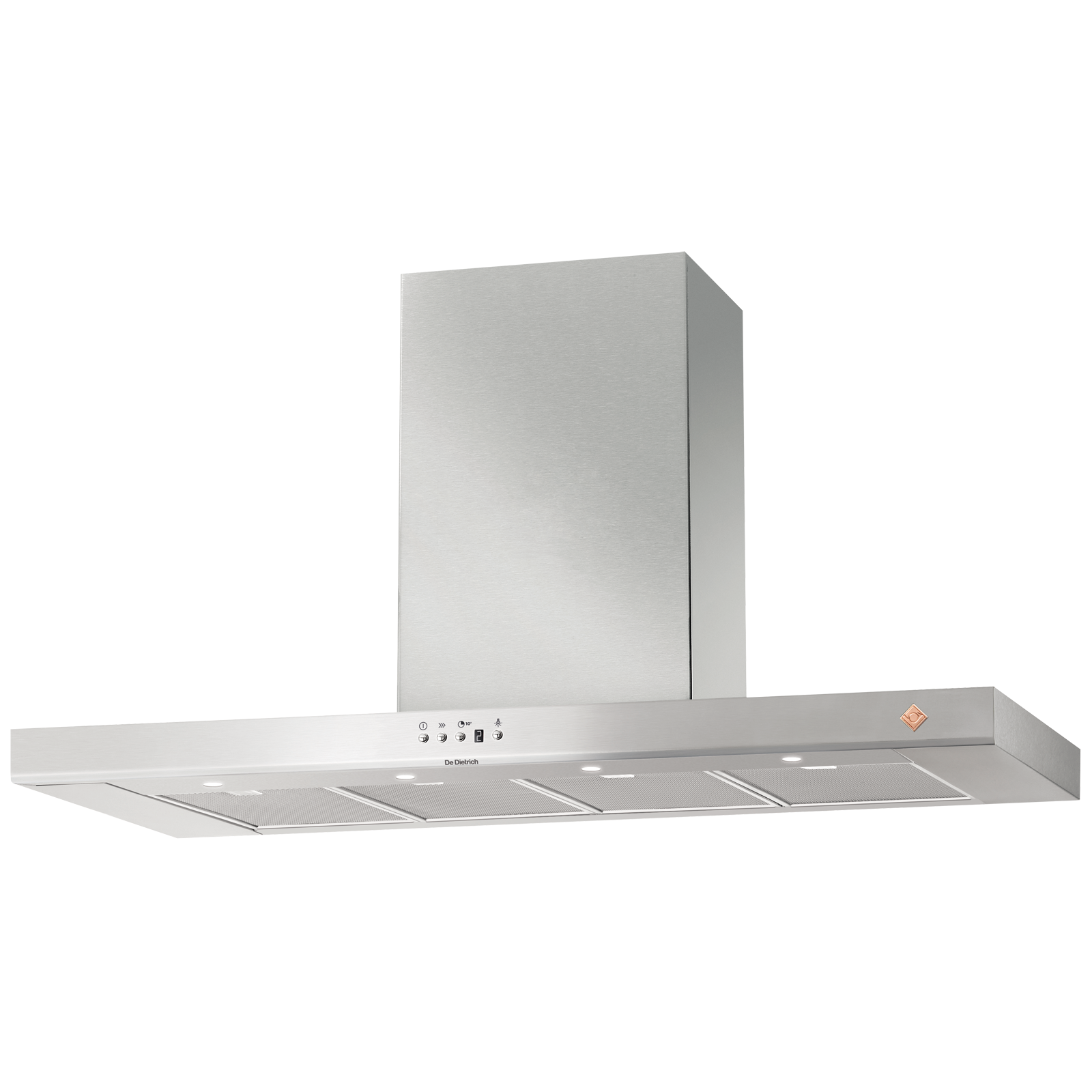

Platinum

Wall decorative hood

DHB7232X
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 29.13ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Fascination
Collection

Its striking and dignified lines, its size and the force behind its suction - which is regulated with just a gentle tap on its electronic controls - make this 120 cm decorative wall-mounted hood an integral part of the current culinary transformation, with kitchens being dedicated to practising the art of cooking more so now than ever before.

colors
Absolute Black
zoom

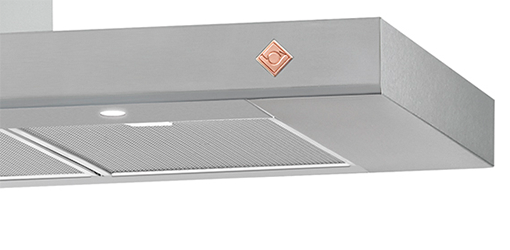

LED Lighting - The Greatest Respect for the Environment
This lighting method stands out as consuming almost 85% less electricity and lasting 20 times as long as an incandescent bulb. The system both efficiently illuminates all the pans on your hob and provides you with soft mood lighting that is ideal for over dinner.
Delayed Stop Function
This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.
Saturation Indicator for Grease and Carbon Filters
In order to ensure the hood works at maximum effi ciency, we recommend that grease fi lters are cleaned and the carbon fi lter is changed regularly. This warning light illuminates when grease has built up on the fi lters and they need cleaning or replacing.

Download :

Main Specifications
Type of hoods:
Wall decorative hood
Output air extraction (m3/h):
544
Width (cm):
120

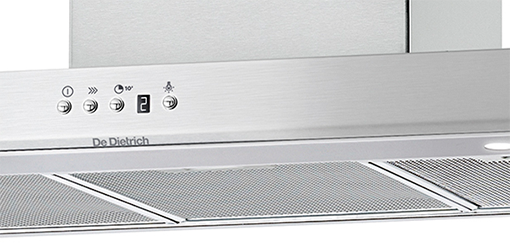

Control panel
Type of control:
Electronic
Boost position:
None
Lighting
Number of lights:
4
Light position:
Front
Type of bulb:
Led
Total brightness in Lux:
700
Lighting power (W):
2.0
Performances
Number of speed positions:
4
Acoustic power level (recycling) (dBA):
58
Max recycling air extraction (m3/h):
471
Boost position output recirculating (m3/h):
633
Boost position air extraction (m3/h):
802
Minimum evacuation sound level (dBA):
55
Max evacuation sound level (dBA):
65
Filtering
Number of filters:
4
No-return airflow clap:
Yes
Optional accessories:
Characoal filter
Dimensions
Height of product without chimmey (mm):
60
Dimensions of product HxWxD (mm):
60X1200X500
Height of chimmey min/max (mm):
750 / 1102
Dimensions of the packed product HxWxD (mm):
600X1280X540
Gross weight (kg):
24
Net weight (kg):
21
Connections
Voltage (V):
220-240
Frequency (Hz):
50-60
Current (A):
10
Connection rating (W):
273.0
