Wall decorative hood DHB7952W

Fascination
Collection

A prized piece in the new 2017 collection, this decorative wall-mounted hood combines style, craftsmanship and innovation in the most perfect of partnerships. With an A+ rating in recognition of its highly efficient performance, the unit has also been designed to make the installation process as simple for you as possible, thanks to its Plug & Play system.

colors

zoom

compare

Add this product to my favourites

A Top-Quality Manufacturing

This hood ombine design aspects, technology and functionality to the same exacting standards. These standards apply throughout the entire life of the unit; with a cleverly-designed mounting and adjustment system, an inner housing for ease of maintenance and cleaning, integrated silencers for the quietest operation possible.

A+ Rated Hood

This hood offers the best possible performance both in terms of energy savings and efficiency: the result of a design that has been successfully brought to fruition which combines the efficiency of three stainless steel fi lters with a highly eff ective motor and LED lighting: two key elements in signifi cantly limiting noise levels and energy consumption.

Boost Function

When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Product sheet EU (24 Ko)

Installation diagram (32 Ko)

Instructions for use (659 Ko)

Energy Label (313 Ko)

Main Specifications

Type of hoods:

Output air extraction (m3/h):

394

Width (cm):

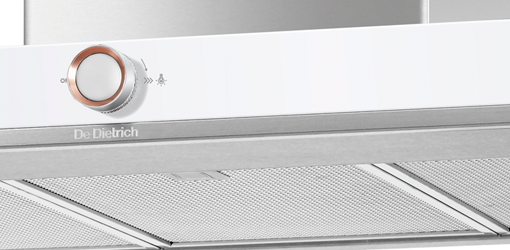

Control panel

Type of control:

Electronic

Boost position:

Yes

Lighting

Number of lights:

Light position:

Front

Type of bulb:

Total brightness in Lux:

393

Lighting power (W):

2.0

Performances

Number of speed positions:

Acoustic power level (recycling) (dBA):

Max recycling air extraction (m3/h):

386

Boost position output recirculating (m3/h):

565

Boost position air extraction (m3/h):

702

Minimum evacuation sound level (dBA):

Max evacuation sound level (dBA):

Filtering

Number of filters:

No-return airflow clap:

Yes

Optional accessories:

Charcoal filter

Dimensions

Height of product without chimmey (mm):

Dimensions of product HxWxD (mm):

60X900X500

Height of chimmey min/max (mm):

650/1002

Dimensions of the packed product HxWxD (mm):

600X980X530

Gross weight (kg):

17.4

Net weight (kg):

14.5

Connections

Voltage (V):

220-240

Frequency (Hz):

50-60

Current (A):

Connection rating (W):

269.0
