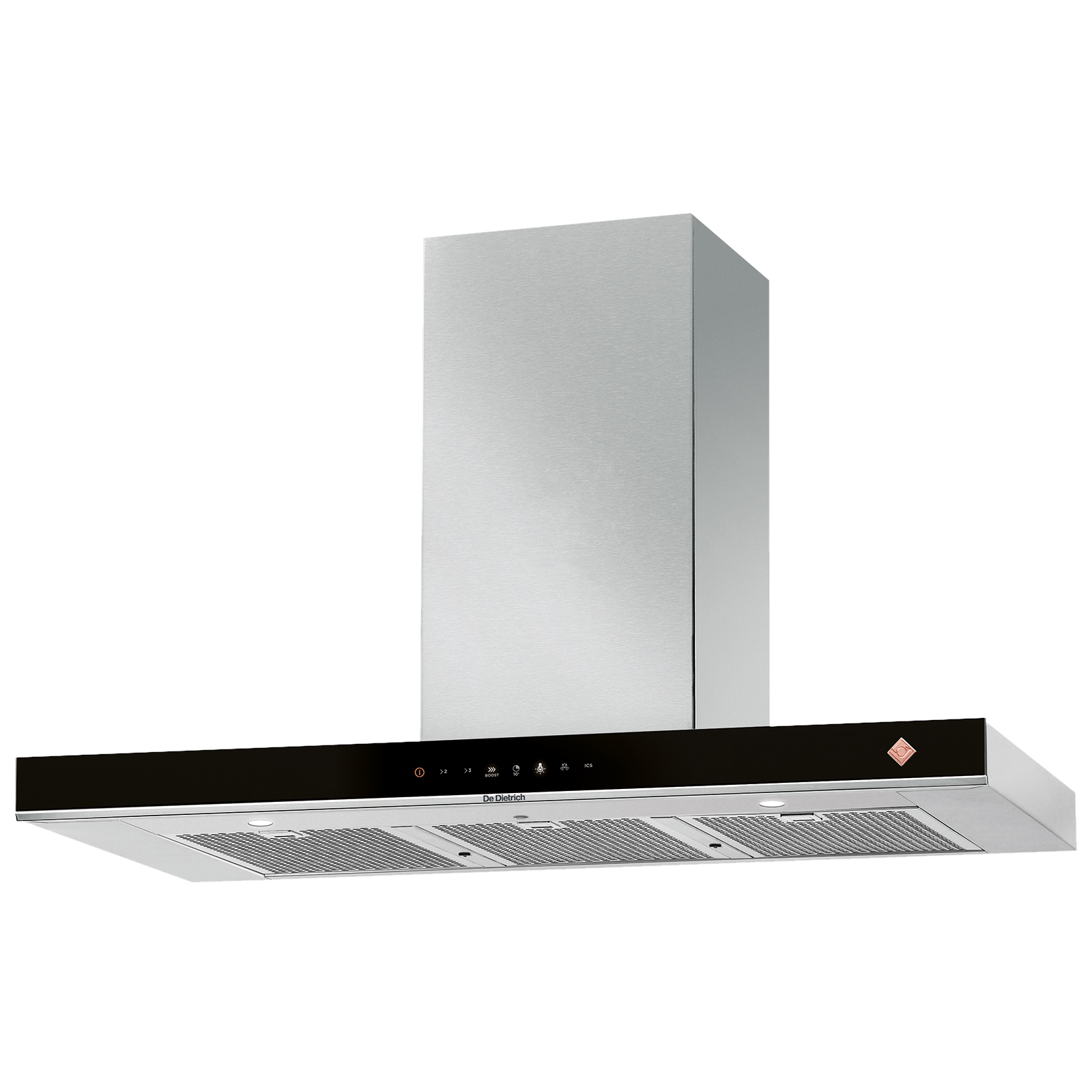

Wall decorative hood DHB7963X

Fascination
Collection

This ICS hood uses sensors to detect heat and vapour, and turns on automatically as soon as it does. It intelligently adapts its speed of extraction, and turns itself off ten minutes after it detects that the last of the vapours have been extracted.

colors

zoom

compare

Add this product to my favourites

ICS Technology

This hood uses sensors to detect heat and vapour, and turns on automatically as soon as it does. It intelligently adapts its speed of extraction, and turns itself off ten minutes after it detects that the last of the vapours have been extracted.

ICS Technology

Eolyse® silently filters and renews kitchen air in a one-hour process. You can also programme it to take anywhere between two and nine hours. Depending on your instructions it can - for example - turn itself off at the end of the evening.

Delayed Stop Function

This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically. The delayed stop function is automatically activated on this ICS hood.

Boost Function

When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Product sheet EU (24 Ko)

Installation diagram (238 Ko)

Instructions for use (668 Ko)

Energy Label (312 Ko)

Main Specifications

Type of hoods:

Wall decorative hood

Output air extraction (m3/h):

500

Width (cm):

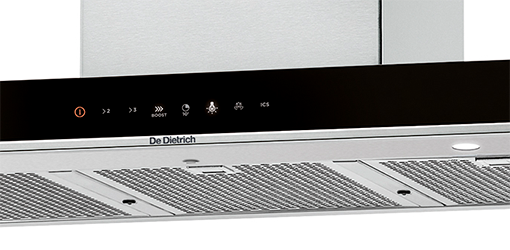

Control panel

Type of control:

Electronic

Boost position:

Yes

Lighting

Number of lights:

Light position:

Front

Type of bulb:

Led

Total brightness in Lux:

394

Lighting power (W):

2.0

Performances

Number of speed positions:

Acoustic power level (recycling) (dBA):

Max recycling air extraction (m3/h):

385

Boost position output recirculating (m3/h):

540

Boost position air extraction (m3/h):

875

Minimum evacuation sound level (dBA):

Max evacuation sound level (dBA):

Filtering

Number of filters:

No-return airflow clap:

Yes

Optional accessories:

Characoal filter

Dimensions

Height of product without chimmey (mm):

Dimensions of product HxWxD (mm):

60X900X500

Height of chimmey min/max (mm):

650/1002

Dimensions of the packed product HxWxD (mm):

600X980X530

Gross weight (kg):

20.5

Net weight (kg):

17.6

Connections

Voltage (V):

220-240

Frequency (Hz):

50-60

Current (A):

Connection rating (W):

269.0
