Infinite Black

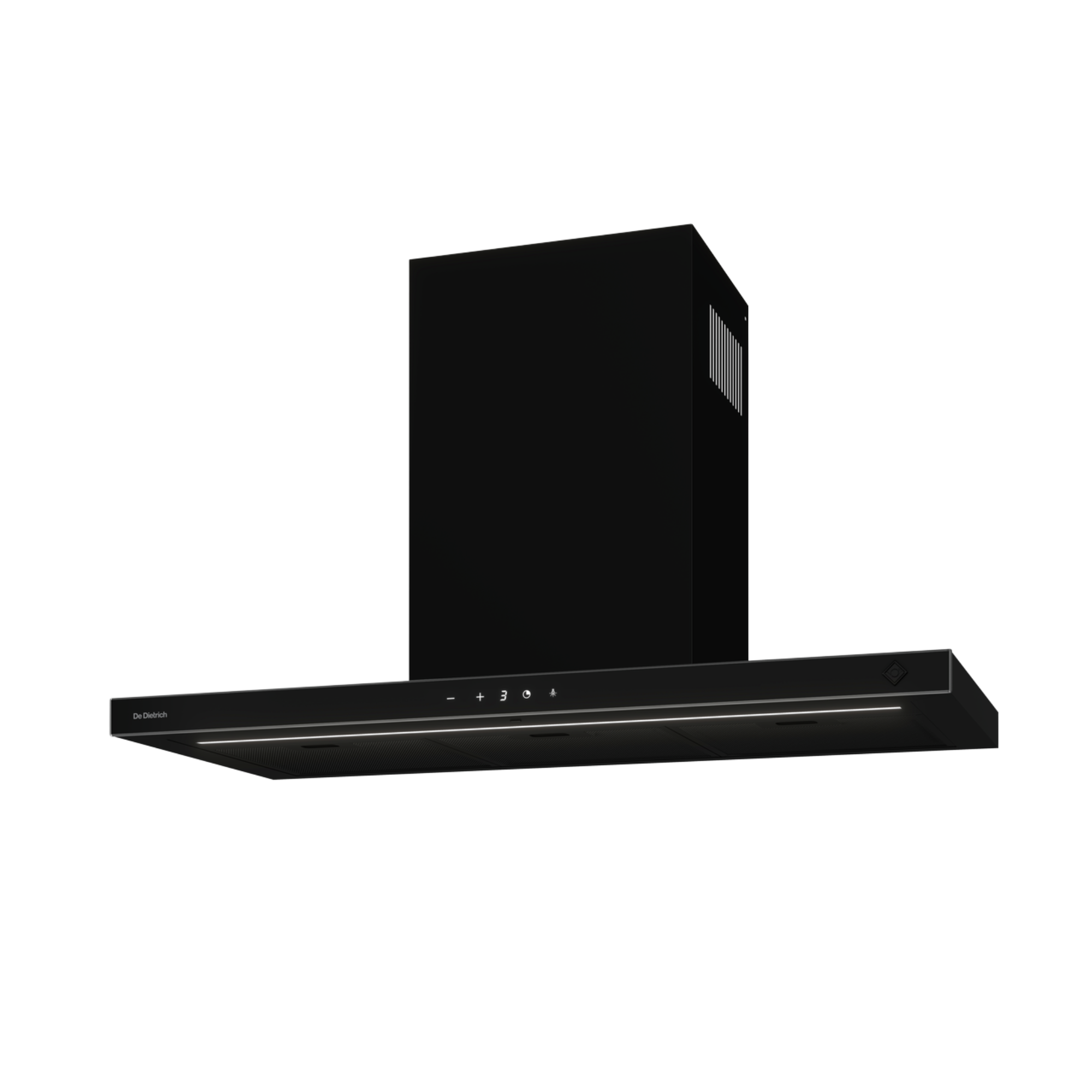

Wall decorative hood

DHB49740B
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 121.99ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Fascination
Collection

- AutoLink
With AutoLink technology, there is no need to adjust the hood: the hob automatically communicates its power levels to the hood, which sets its airflow accordingly.

- Ambient light
Choose from warm colors, a dimmed atmosphere, or white light to customize the ambiance. Adjust the brightness with different levels of intensity to suit your needs and desires.

- Moteur brushless
The brushless motor offers good performance enabling high suction capacity while reducing the energy consumption of the hood.

colors
Absolute Black
zoom

Download :

Main Specifications
Type of hoods:
Wall decorative hood
Output air extraction (m3/h):
545
Width (cm):
90
Control panel
Type of control:
Electronic touch-sensitive controls
Lighting
Number of lights:
1
Type of bulb:
Led stripe
Total brightness in Lux:
163
Lighting power (W):
9
Performances
Number of speed positions:
3
Acoustic power level (recycling) (dBA):
39
Max recycling air extraction (m3/h):
510
Boost position output recirculating (m3/h):
700
Boost position air extraction (m3/h):
735
Minimum evacuation sound level (dBA):
42
Max evacuation sound level (dBA):
65
Filtering
Number of filters:
3
No-return airflow clap:
Yes
Optional accessories:
Charcoal filter
Dimensions
Height of product without chimmey (mm):
40
Dimensions of product HxWxD (mm):
40X900X406
Height of chimmey min/max (mm):
730/935
Dimensions of the packed product HxWxD (mm):
540X1000X575
Gross weight (kg):
18.8
Net weight (kg):
15.2
Connections
Voltage (V):
220-240
Frequency (Hz):
50-60
Current (A):
1.25
Connection rating (W):
160
